E-bike
- Battery
- 840Wh battery

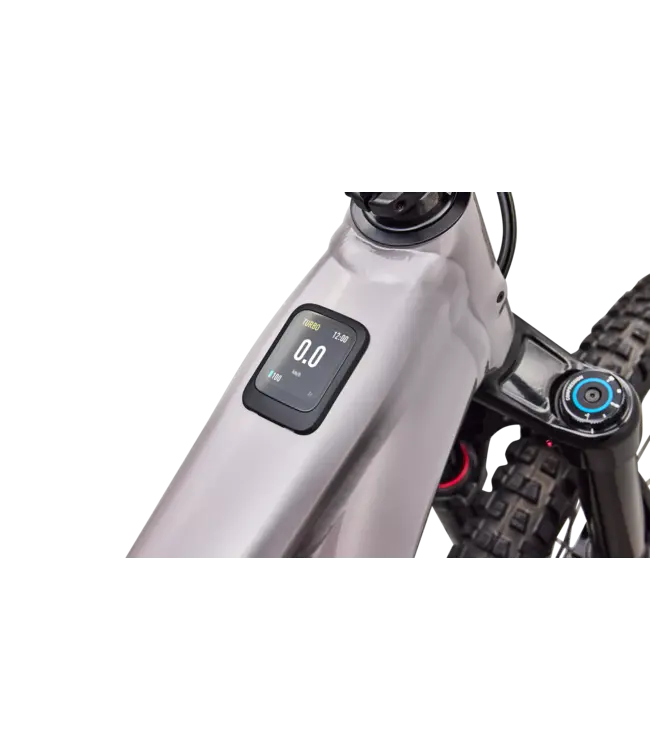

- UI/Remote
- Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
- Motor

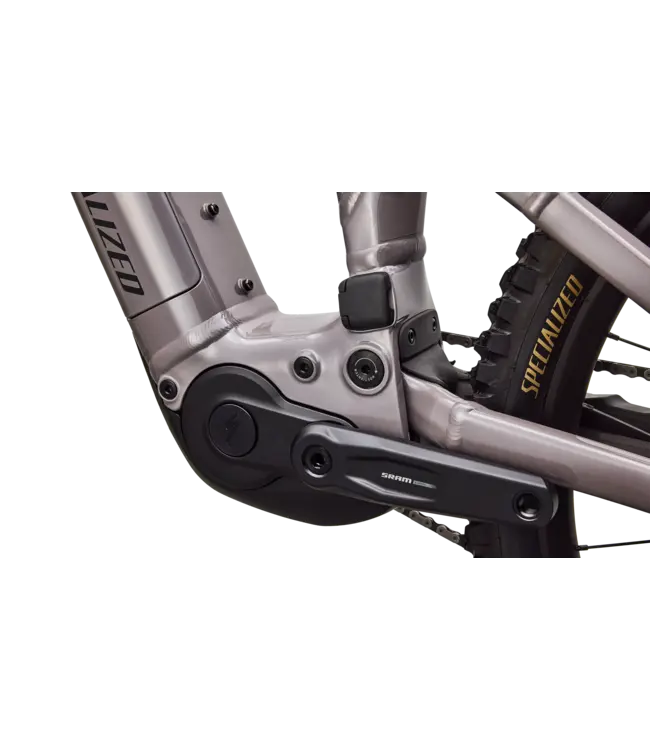

- Specialized 3.1 Motor, 105Nm torque, 810W power
- Charger
- Specialized 4amp charger
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- Levo 4 alloy frame, 150mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel
Suspension
- Fork
- All New SRAM FS ZEB Select, 29" 180mm, Linear XL spring, Delta RC damper, rebound adjust

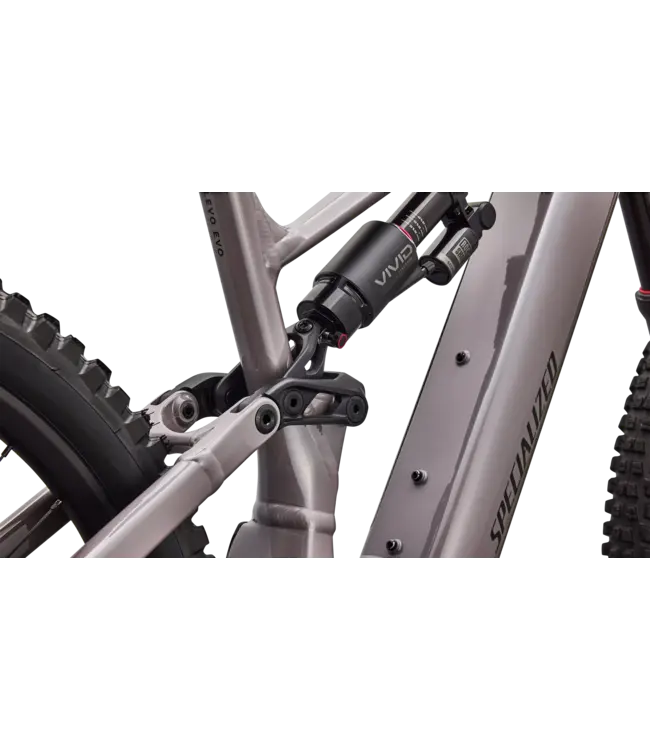

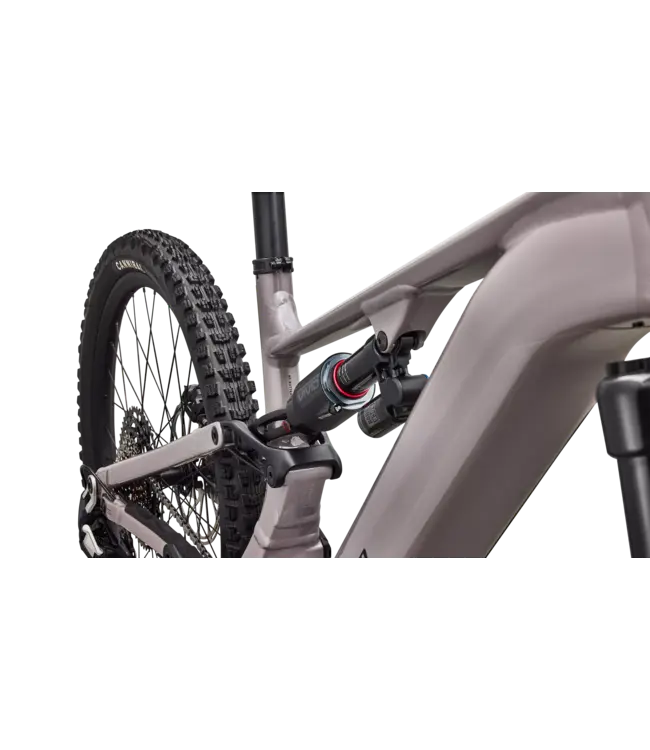

- Rear Shock
- All New Vivid Select air, 230x62.5mm, Linear XL spring, RT damper w/climb switch, rebound adjust
Brakes
- Rear Brake
- SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
- Front Brake
- SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
Drivetrain
- Cassette
- SRAM 12-speed,10-52t
- Chainrings
- SRAM 34t T-Type chainring, 104 BCD, steel
- Chain
- SRAM 70 Transmission 12-Speed Flattop Chain
- Shift Levers
- SRAM EAGLE 90T, single click, with MMX
- Rear Derailleur
- SRAM Eagle 90 T-Type
- Crankset
- SRAM S1000 Alloy crank, ISIS interface, 155mm length
Wheels & tires
- Front Tire
- Butcher, GRID Gravity casing, GRIPTON® T9 compound, TLR, 29x2.4"
- Rear Tire
- Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4
- Spokes
- DT Swiss Elemental
- Front Hub
- Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
- Rear Hub
- Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 28h, HG Steel Fhb
- Rims
- Specialized, hookless alloy, 30mm inner width, tubeless ready
- Inner Tubes
- Standard, Presta Valve
Cockpit
- Stem
- Alloy Trail Stem, 35mm bar bore

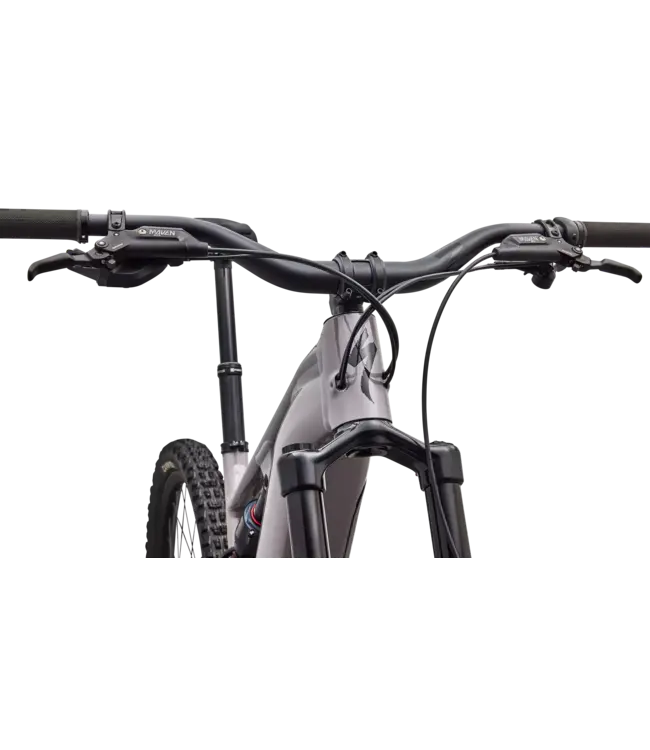

- Handlebars
- Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
- Saddle
- Bridge Comp, Hollow Cr-mo rails 155/143
- Grips
- Specialized Trail Grips
- SeatPost
- X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm
Accessories
- SWAT
- SWAT Internal downtube storage
Product details
- Product ID
- 296283
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight
- 26.92 kg (59 lb, 5.6 oz)
- Weight Size
- S4
