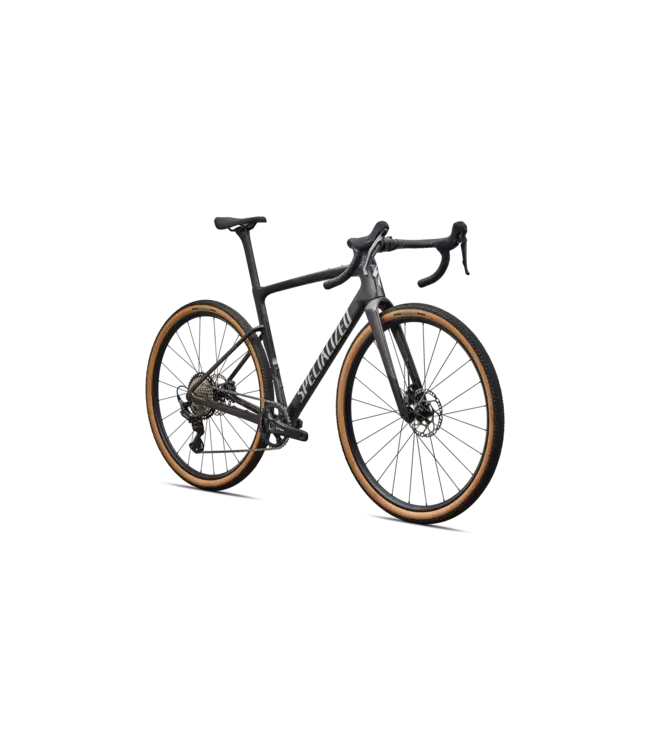

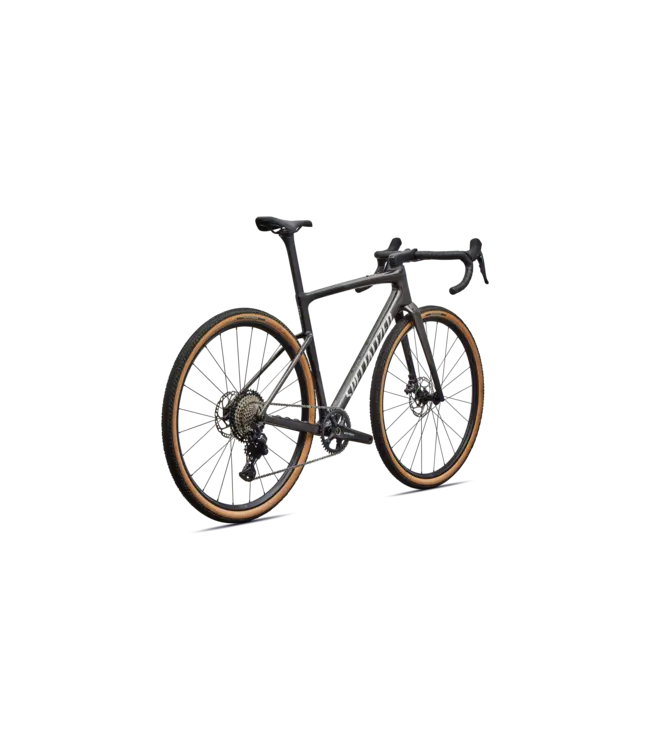

Crux 5 Sport
Eat My Dust
The Crux 5 was born from the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.
Frameset
- Frame
- Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
- Fork
- S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Brakes
- Front Brake
- Shimano GRX BR-RX820
- Rear Brake
- Shimano GRX BR-RX820
Drivetrain
- Crankset
- Shimano GRX FC-RX820, 40t
- Rear Derailleur
- Shimano GRX RD-RX822-GS, 12-speed
- Bottom Bracket
- Shimano Threaded BSA BB
- Chain
- Shimano XT CN-M8100, 12-speed
- Cassette
- Shimano XT CS-M8100, 12-speed, 10-45t
- Shift Levers
- Shiimano GRX ST-RX820
Wheels & tires
- Inner Tubes
- 700x32-50mm, 40mm Presta valve
- Front Wheel
- DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
- Rear Wheel
- DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
- Front Tire
- Pathfinder 700x45, Tubeless Ready
- Rear Tire
- Pathfinder 700x45, Tubeless Ready
Cockpit
- Saddle
- Body Geometry Power Sport, steel rails
- SeatPost
- S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
- Stem
- Roval Rapide, alloy, 4 bolt, -6 degrees
- Handlebars
- Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare
- Tape
- Supacaz Super Sticky Kush
- Seat Binder
- Integrated Wedge
Product details
- Product ID
- 312531
Weight
- Weight Size
- 56
- Weight
- 8.94 kg (19 lb, 11.3 oz)
